In this module, we explored design experimentation. First, we selected cardboard boxes as our medium due to their high malleability, allowing us to cut and assemble them into various shapes. Second, we chose projectors to cast images onto the cardboard, combining these elements to complete the artwork. This fusion of three-dimensional and two-dimensional visual design offers users a novel experience.
Additionally, we learned to use TouchDesigner to project images onto cardboard boxes. This professional yet user-friendly software enabled us to successfully project sourced materials onto cardboard after observing classroom demonstrations. Through this project, we mastered how to realize our concepts using simple materials and professional tools, ensuring these skills will be applicable to future projects.

Workshop 1 Geurilla Prototyping I

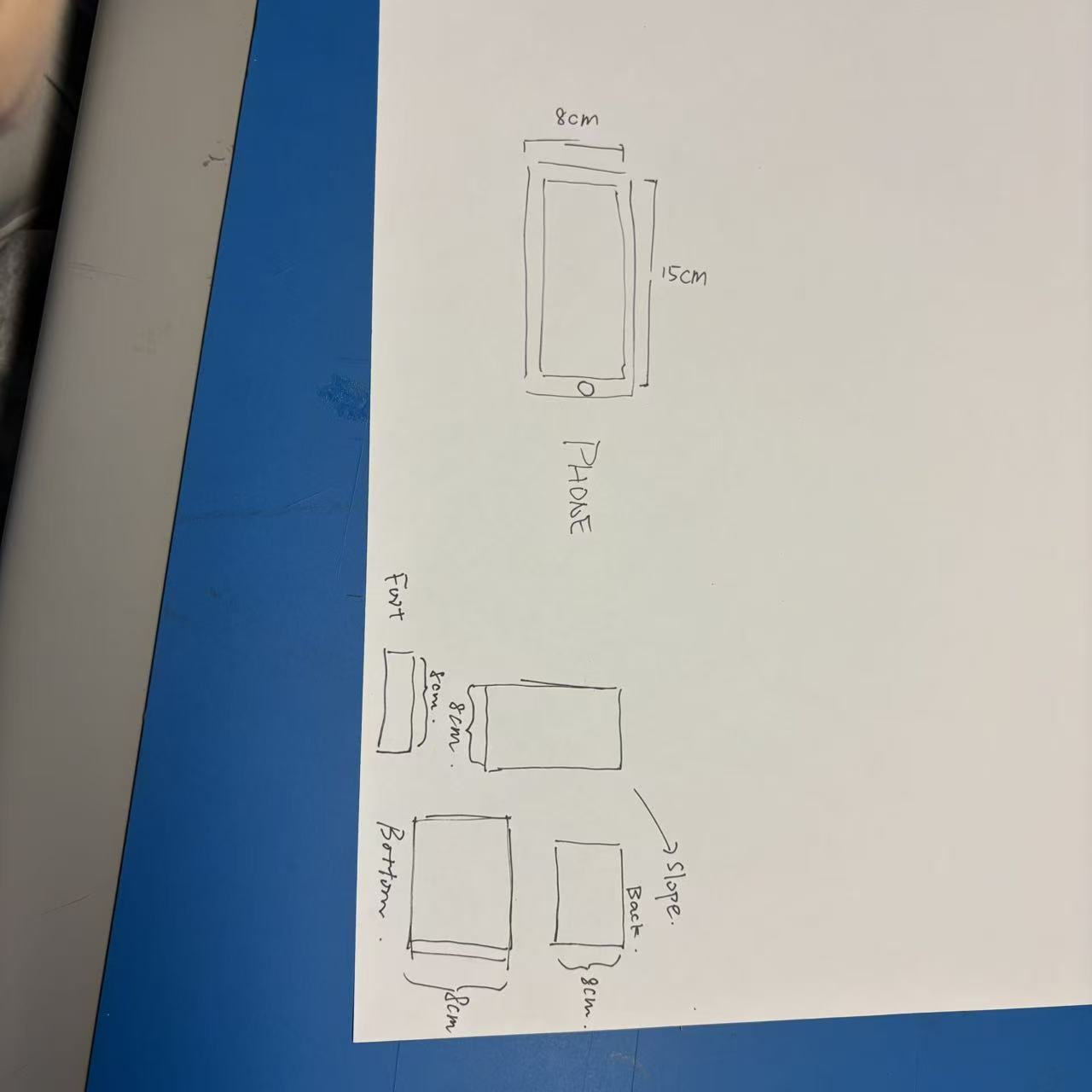

This is the design blueprint for a cardboard phone stand.

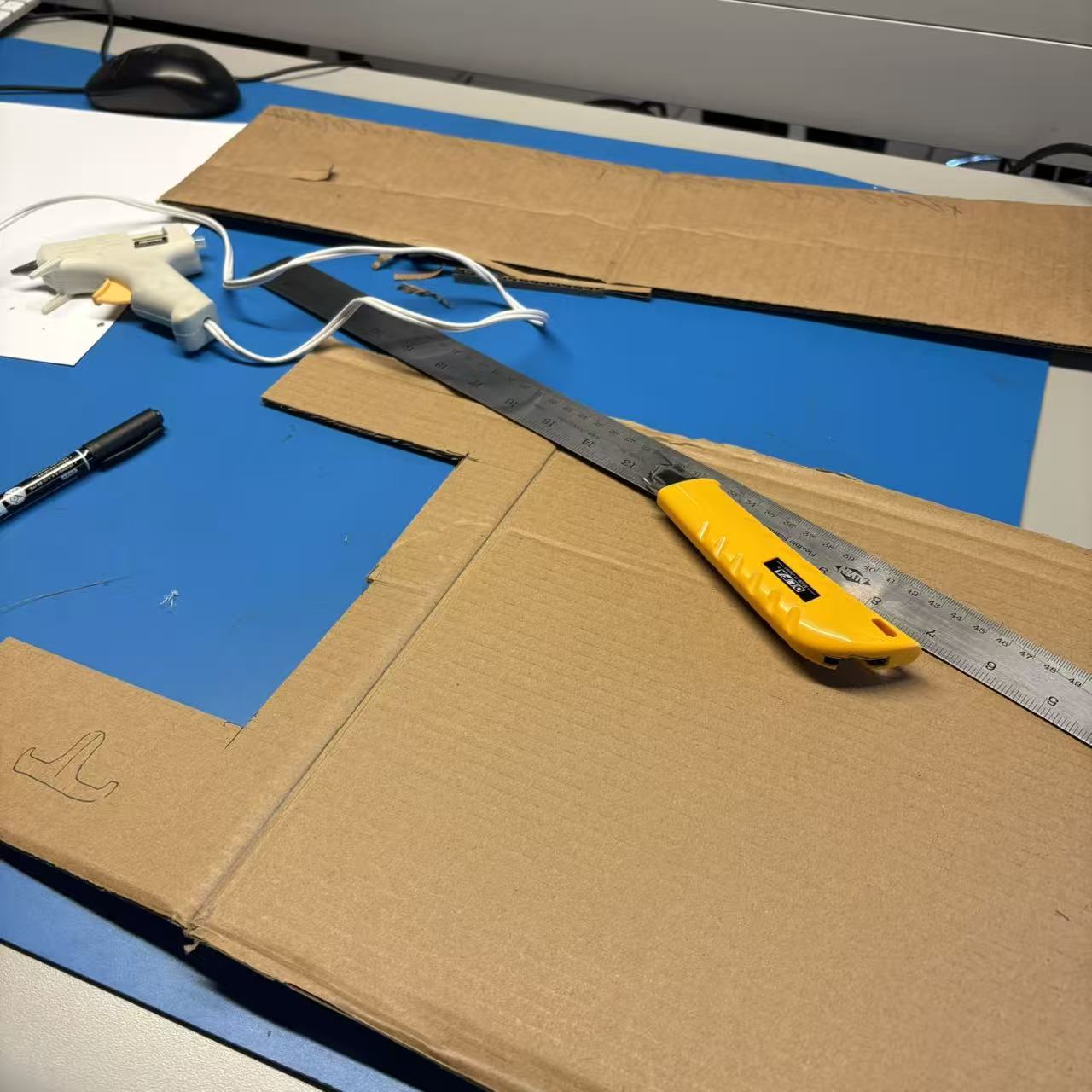

These are the main tools needed to make a cardboard phone stand.

Using a ruler and utility knife to cut cardboard with clean edges.

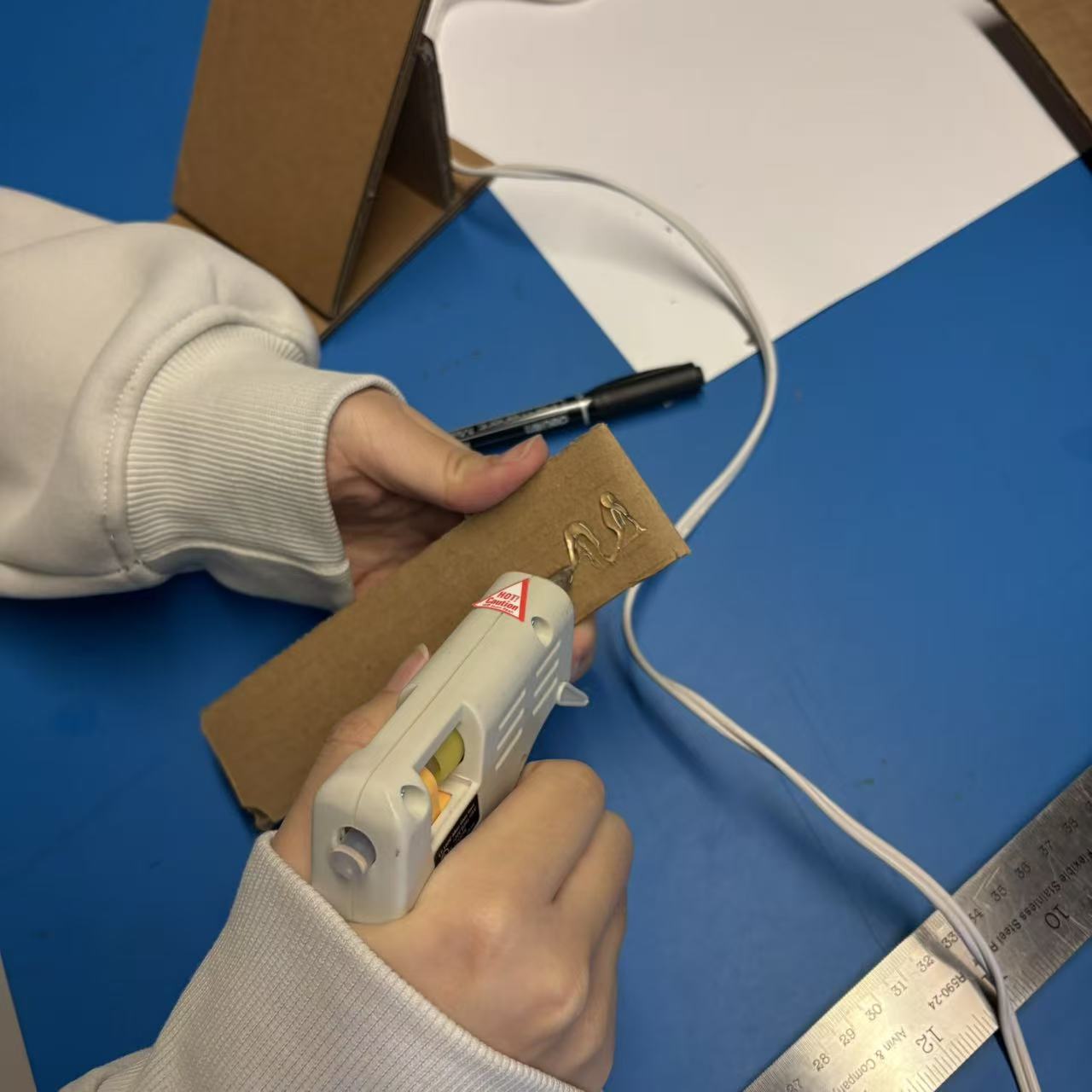

Use hot melt adhesive to bond the cardboard. Bond as quickly as possible to prevent the hot melt adhesive from drying.

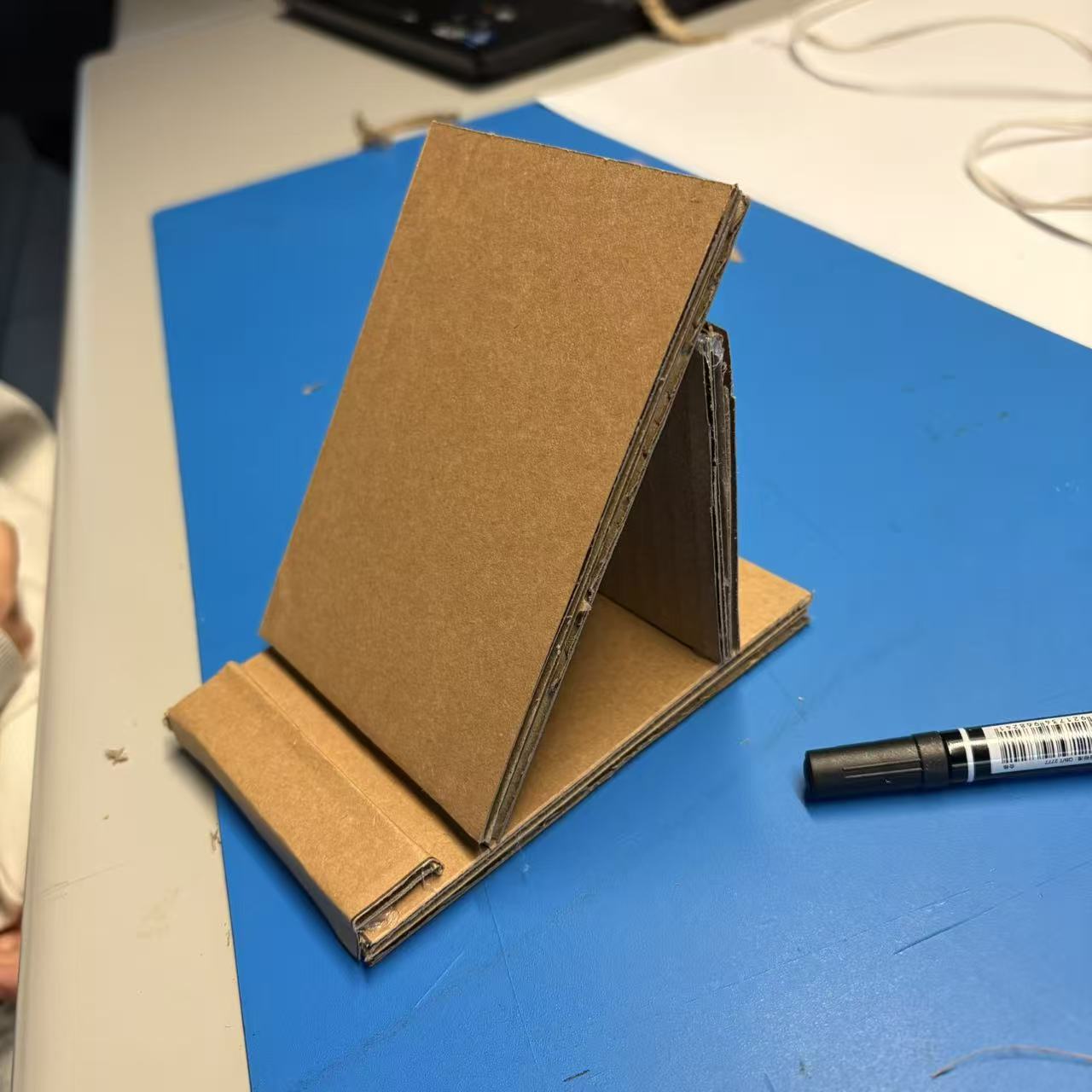

This is the finished cardboard phone case, the final product.

Workshop 2 Geurilla Prototyping II

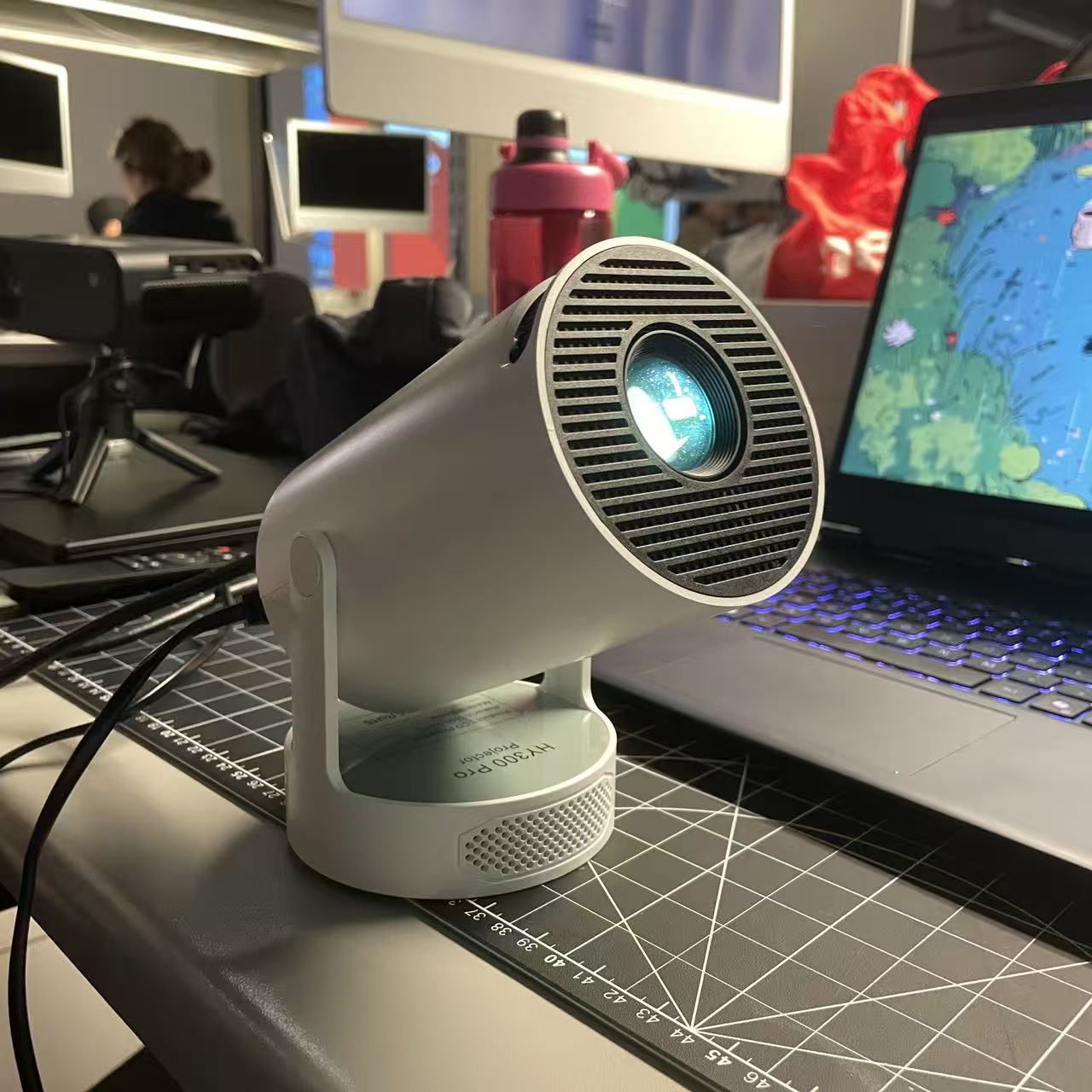

Projector Option 1, which was ultimately the one we selected, produced images with vibrant colors.

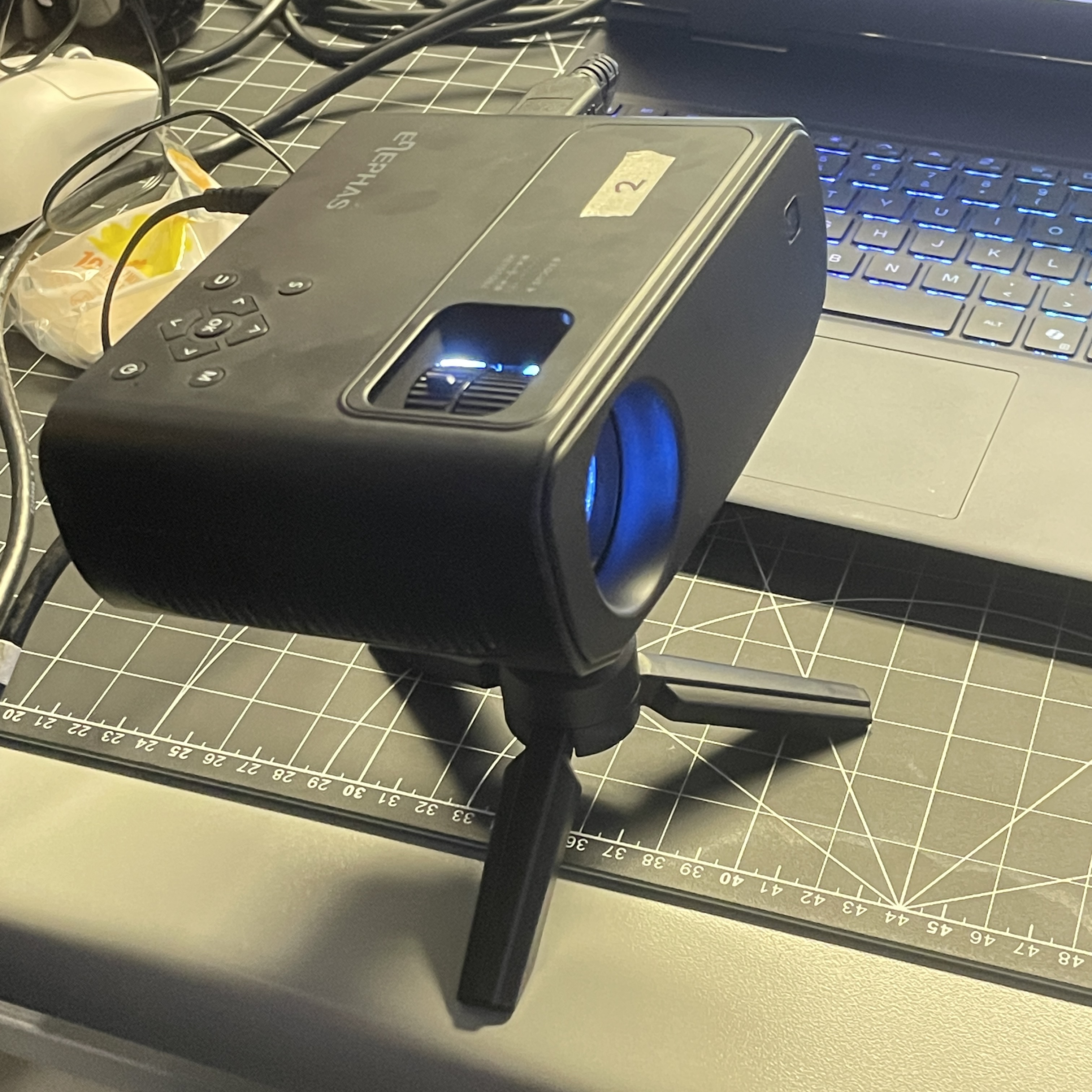

Projector Option 2 was ultimately not selected due to its low resolution and significant chromatic aberration.

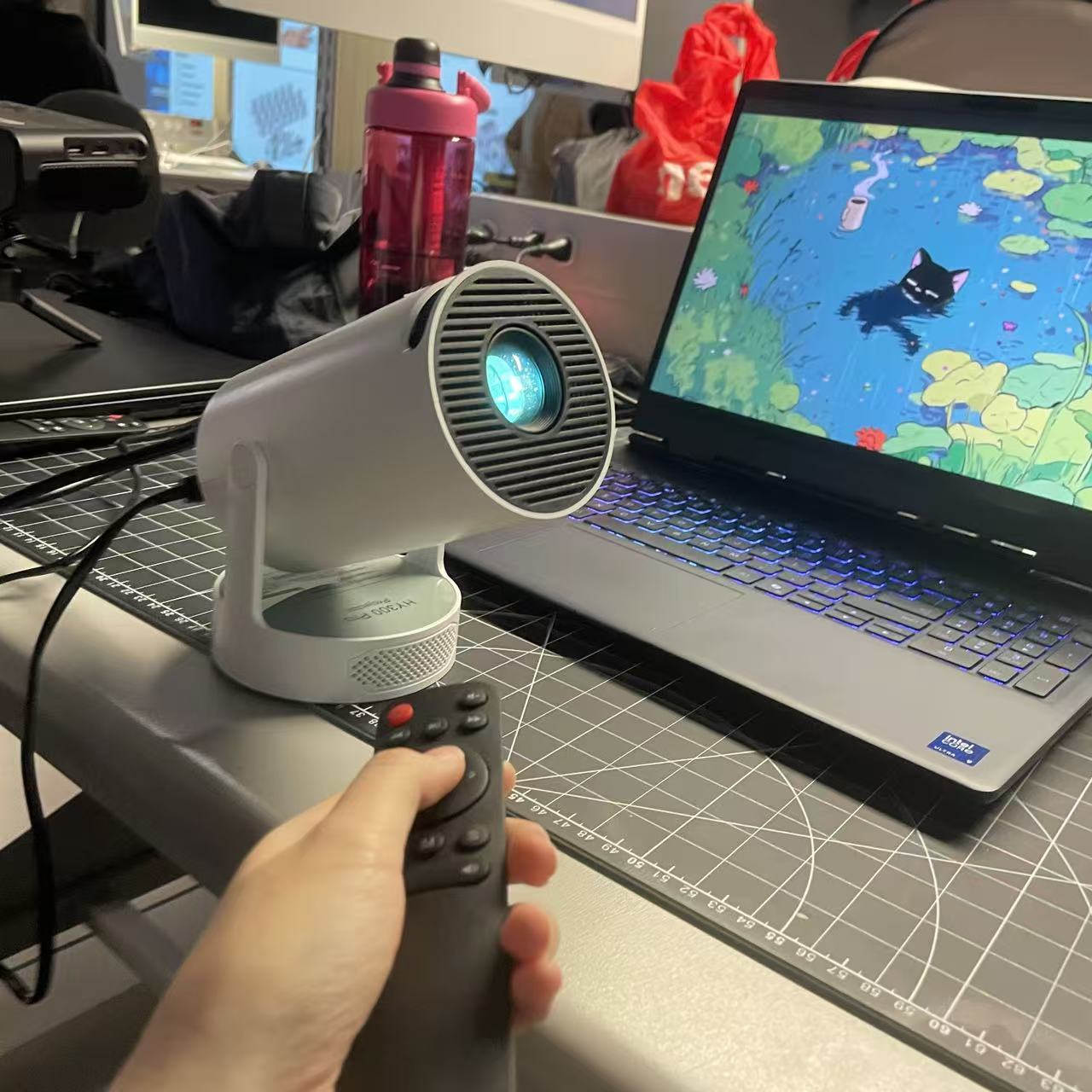

Projector 1 can be operated remotely using the remote control.

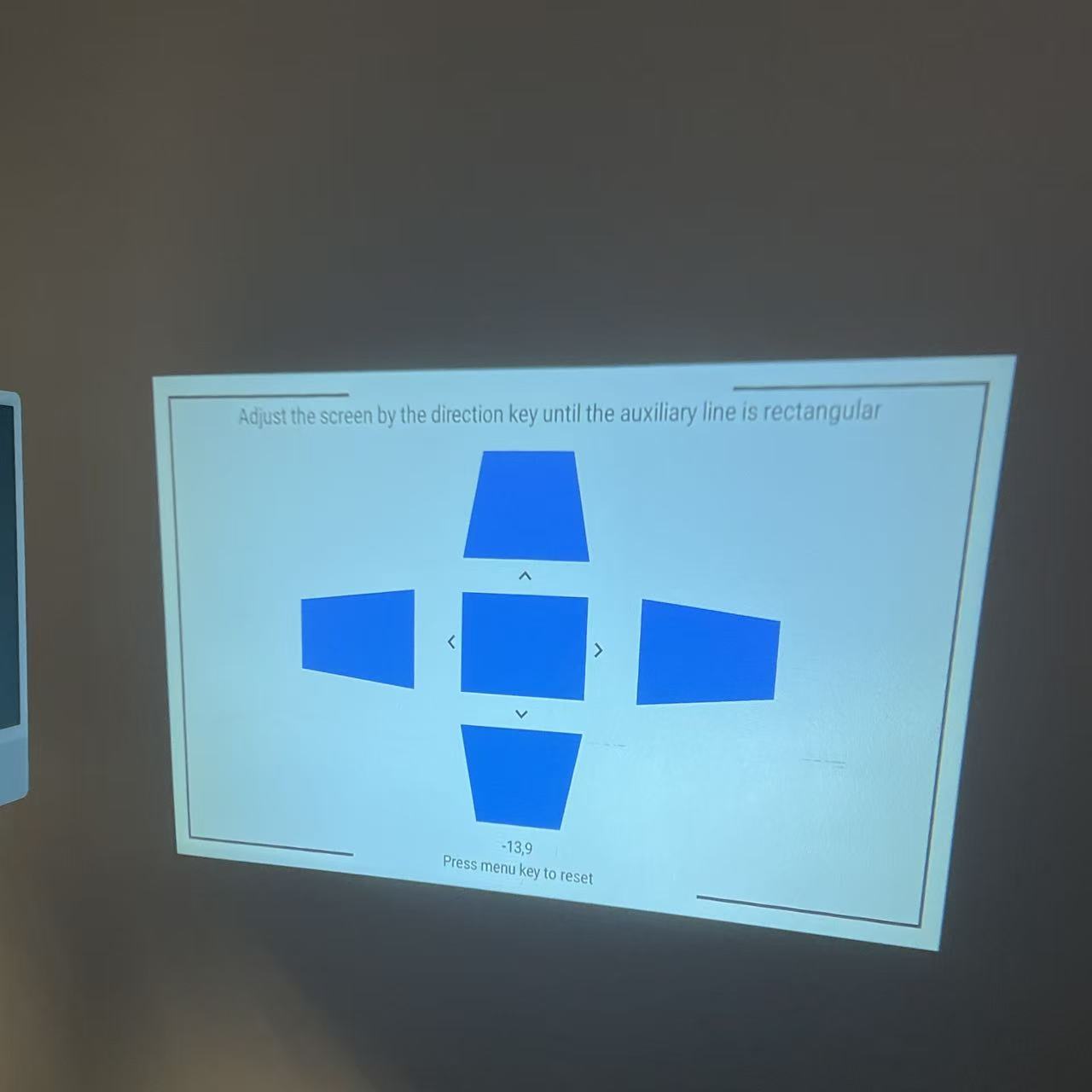

The projector can adjust the image horizontally through settings to ensure clarity and projection size (shape).

The image projected by the projector onto the wall, can be made clearer by adjusting the focus.

Activity 1: My Resarch

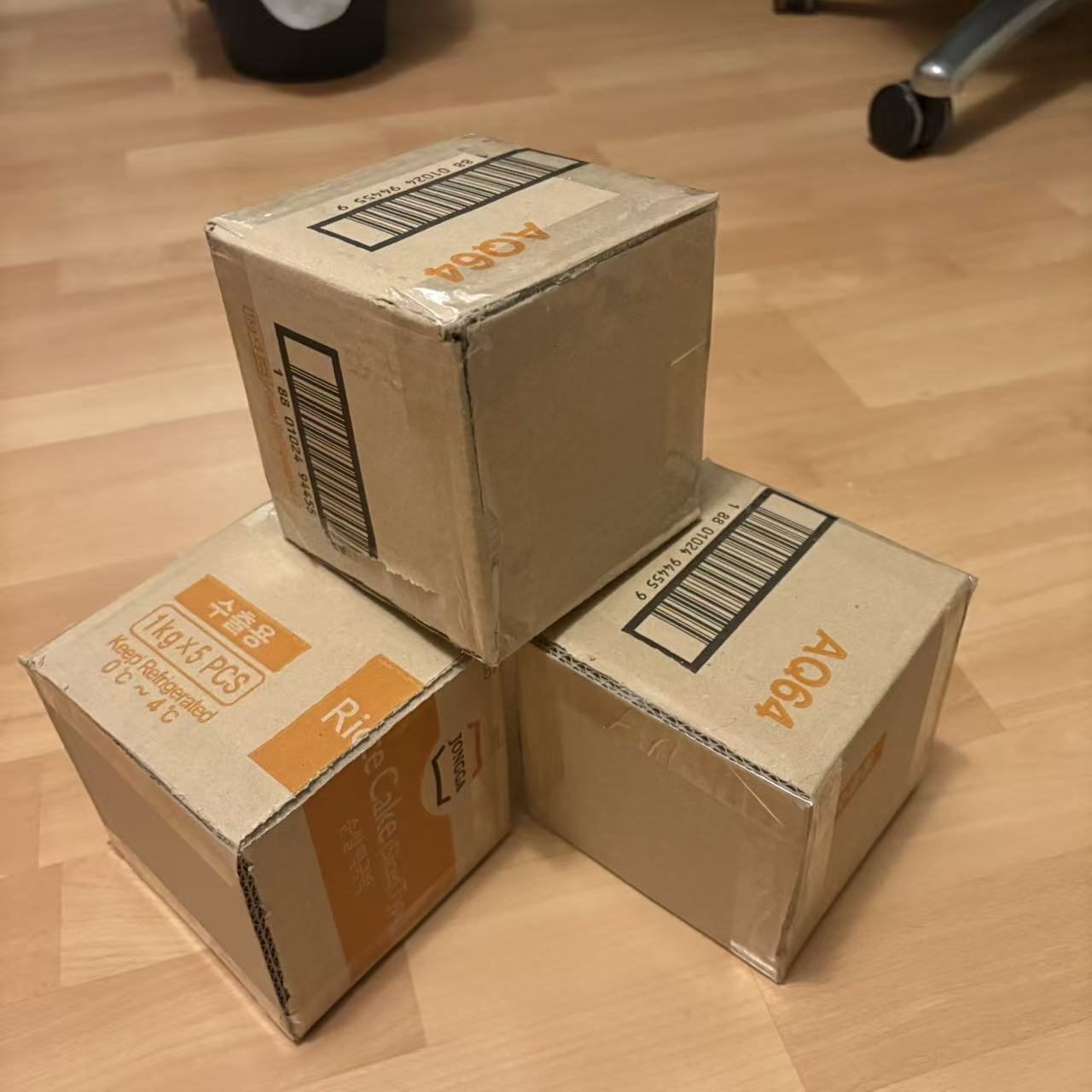

Three cubes cut from shipping cardboard boxes will be used to project images onto their surfaces.

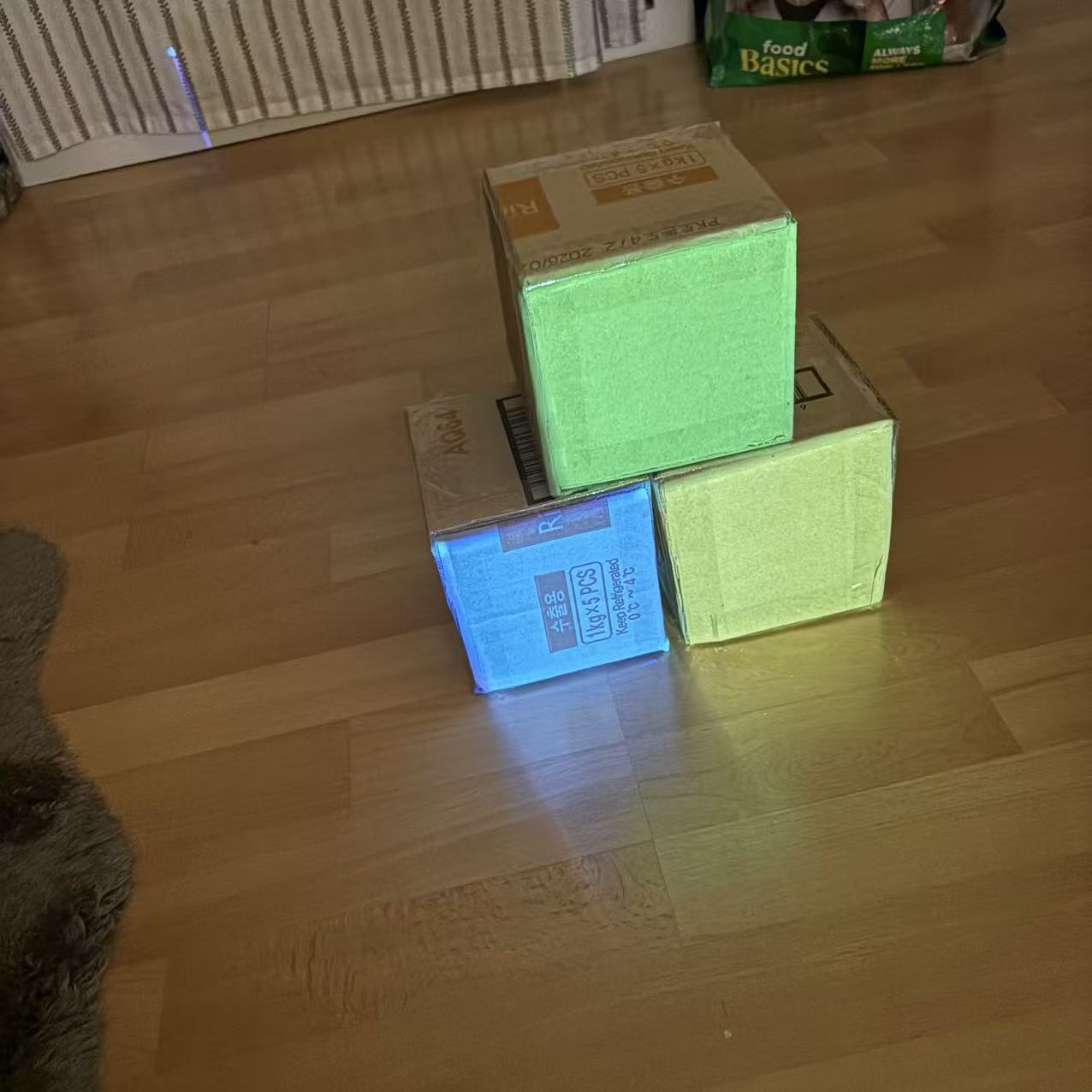

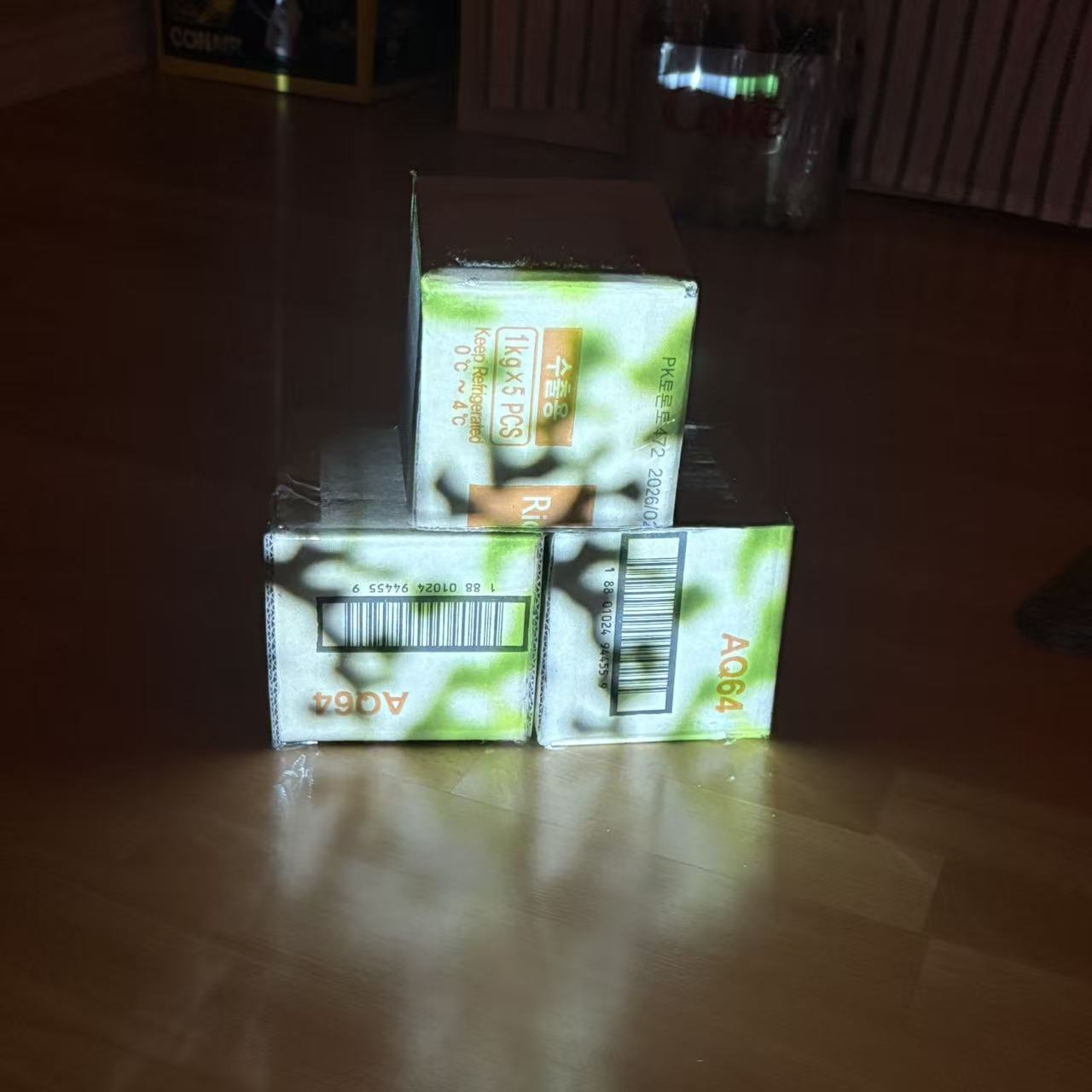

Noise texture allows for color adjustment, offering greater creative possibilities. (The image appears to show leaf shadows.)

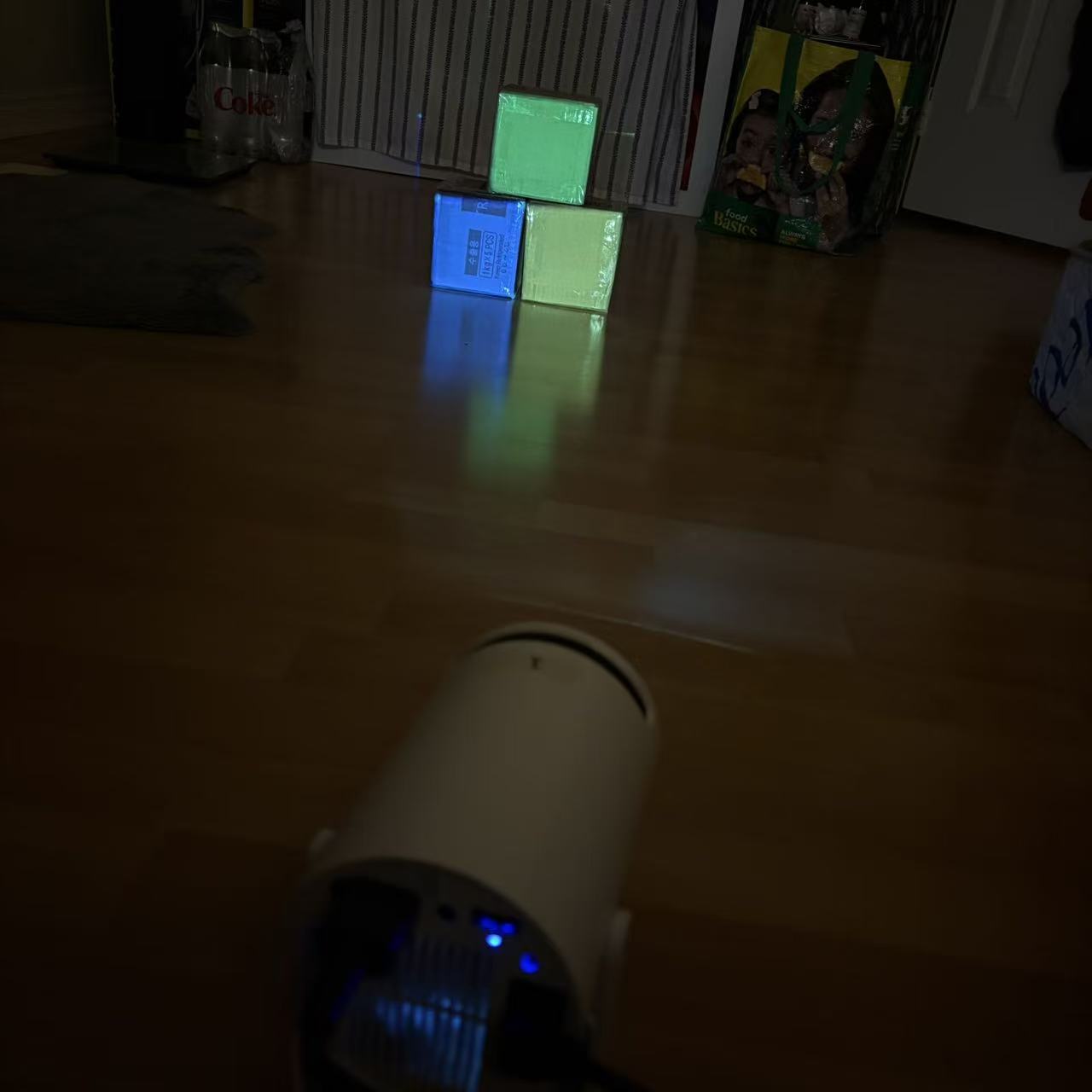

When using the projector, it should be kept on the same horizontal line as shown in the diagram. However, due to issues with the projector, the projection direction is slightly off.

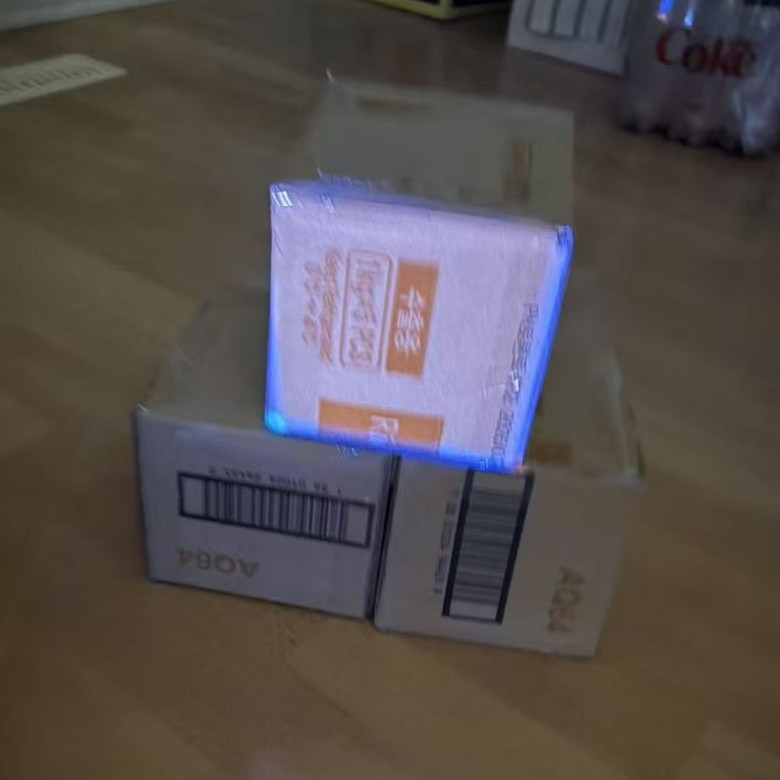

Using TouchDesigner to project images onto cardboard boxes.

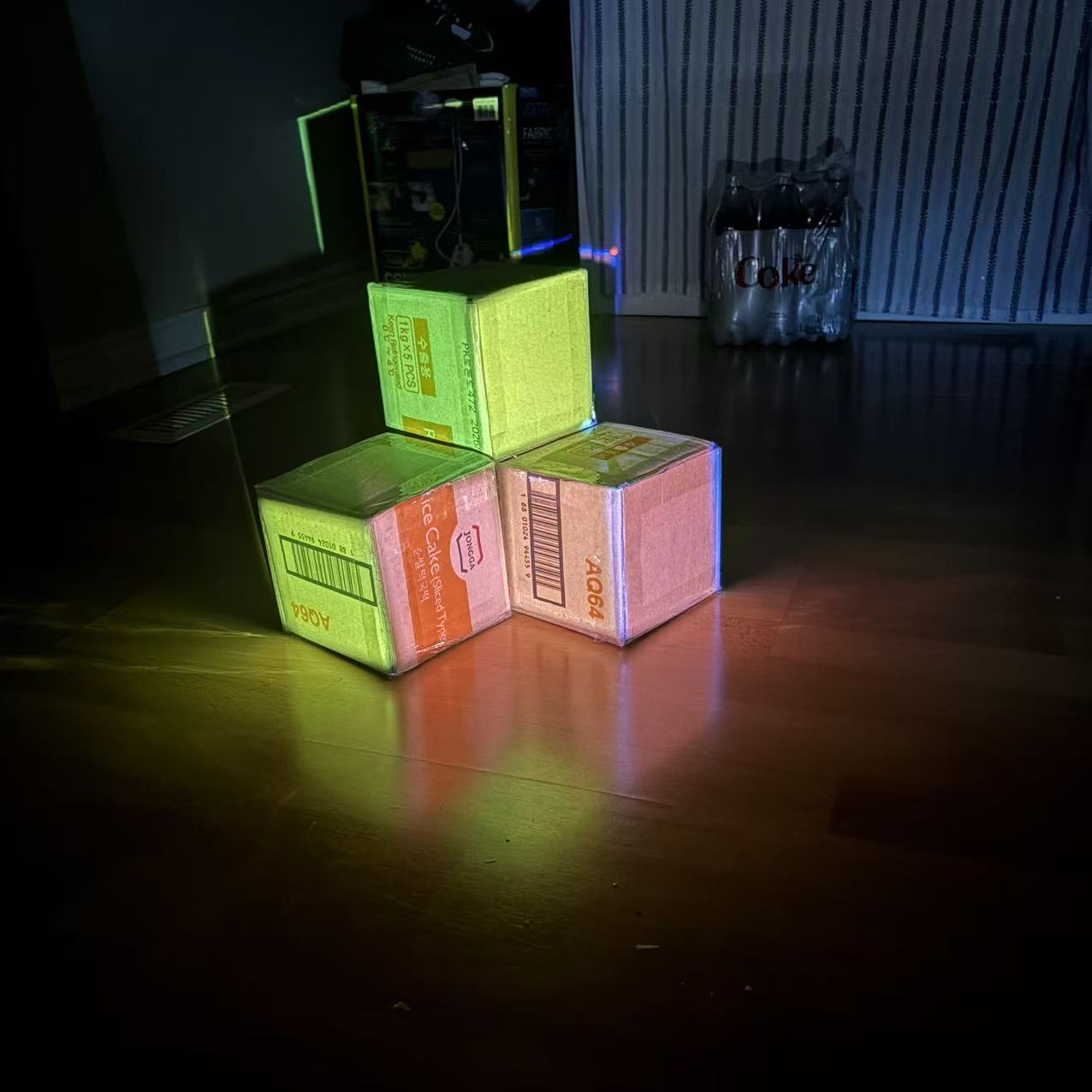

By adjusting the angle and shape of the rectangle in TouchDesigner, it can be made to perfectly align with the cardboard box.

Activity 2: My Reearch

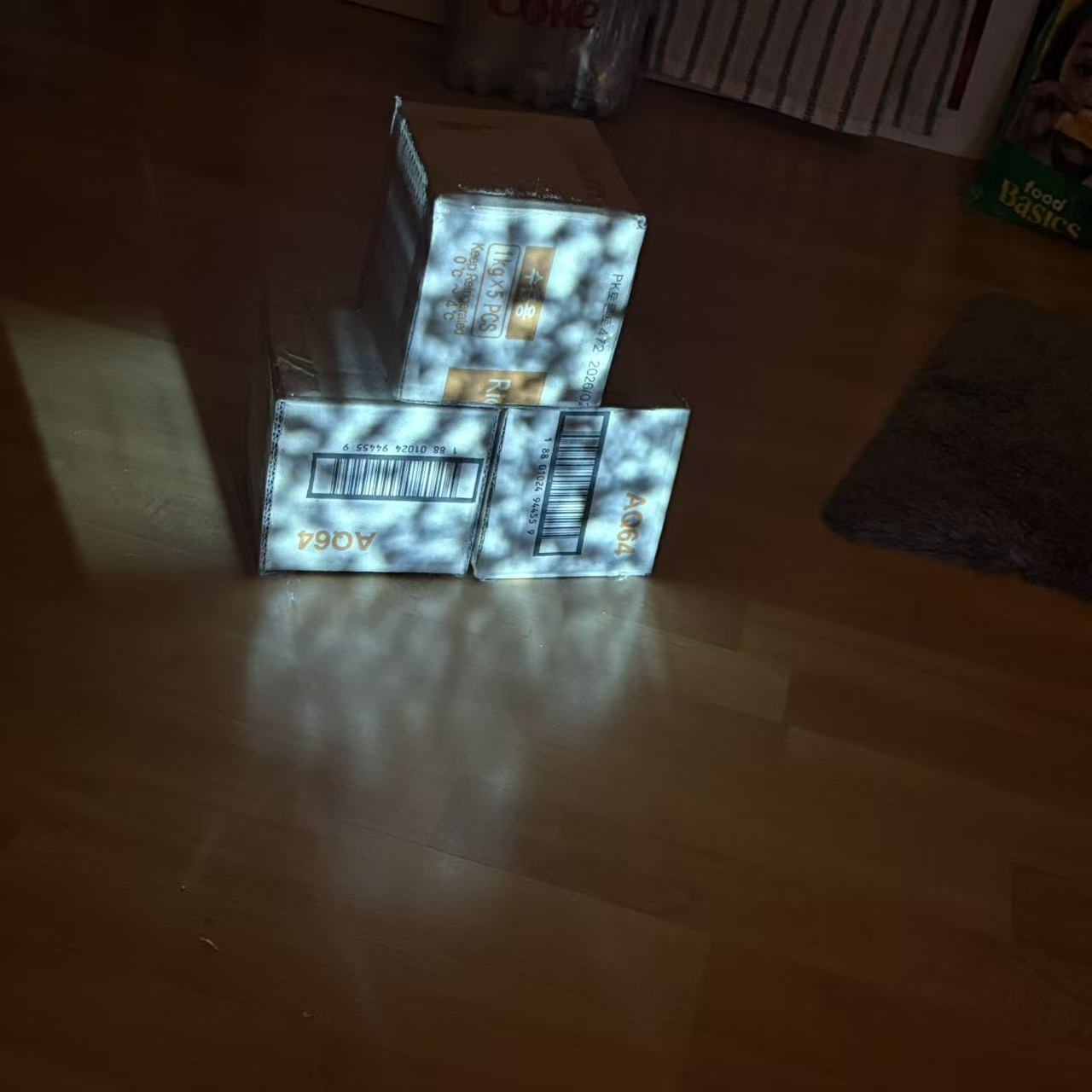

Use TouchDesigner's built-in noise texture and adjust it to perfectly fit the cardboard box.

test3Lorem ipsum dolor sit amet, consectetur adipiscing elit

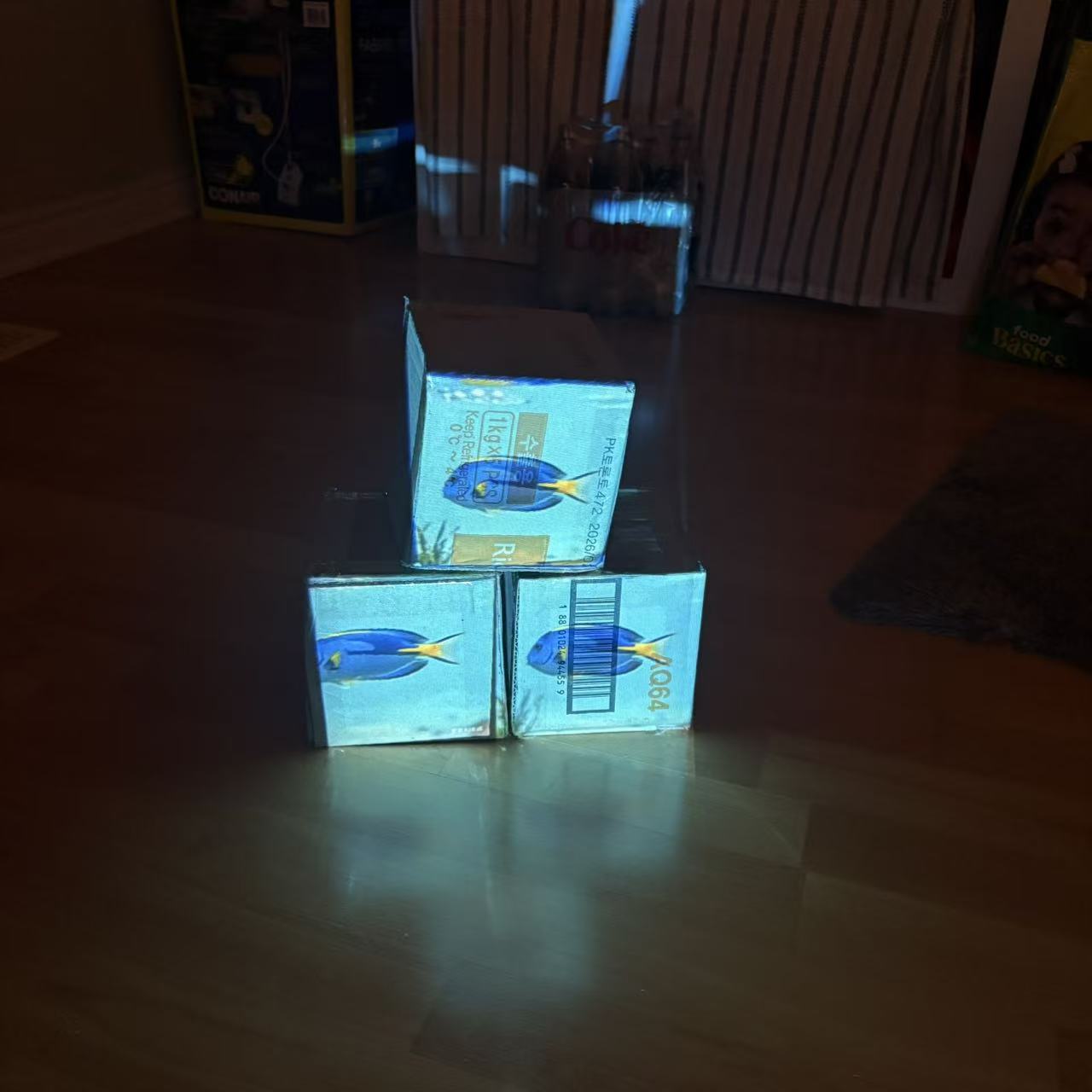

Initial attempt: Apply the animated fish swimming graphic to the cardboard box and ensure the animation plays correctly.

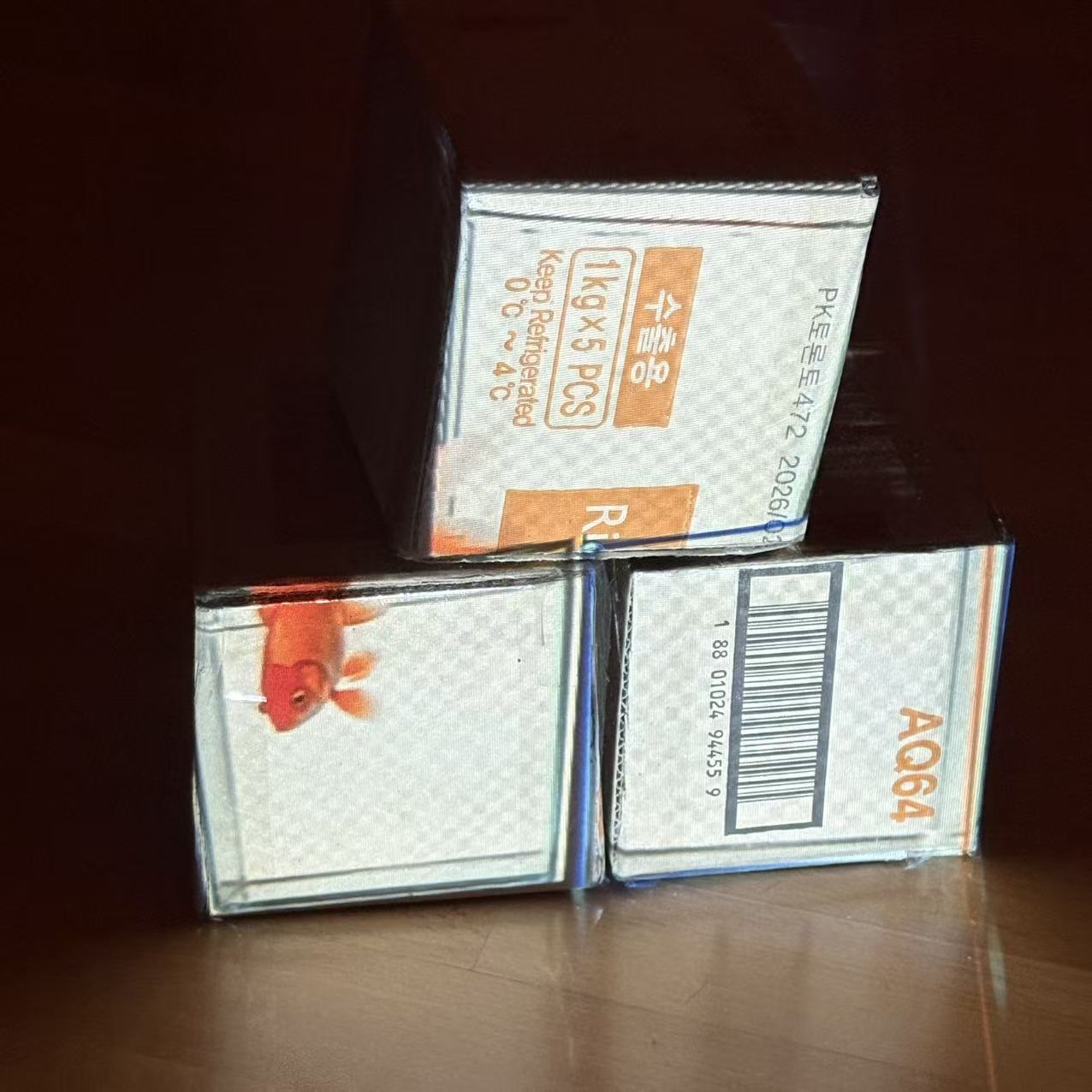

After finding the right animated image and adjusting its dimensions, it appears as though a goldfish is swimming between three cardboard boxes.

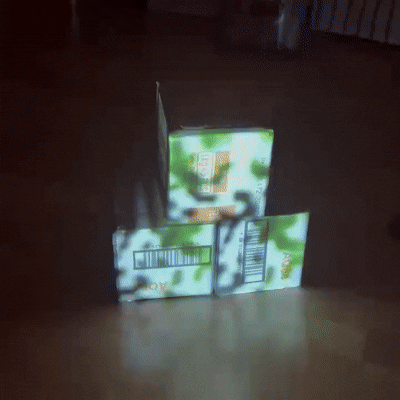

This is what the texture looks like in motion.

Additional Research or Workshops

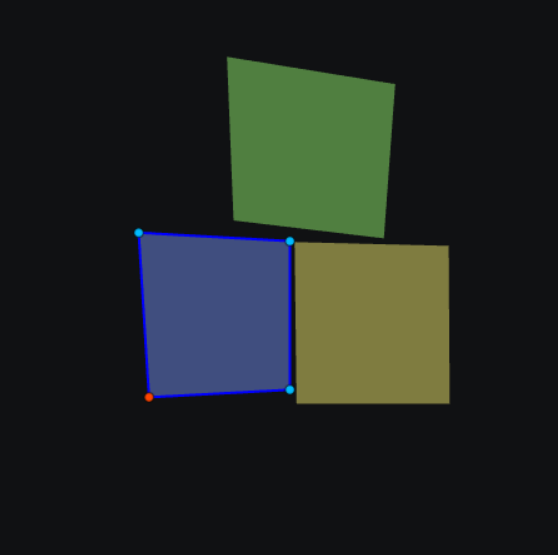

This is a screenshot of the process of adjusting the quadrilateral placed on the cardboard box within Touch Designer.

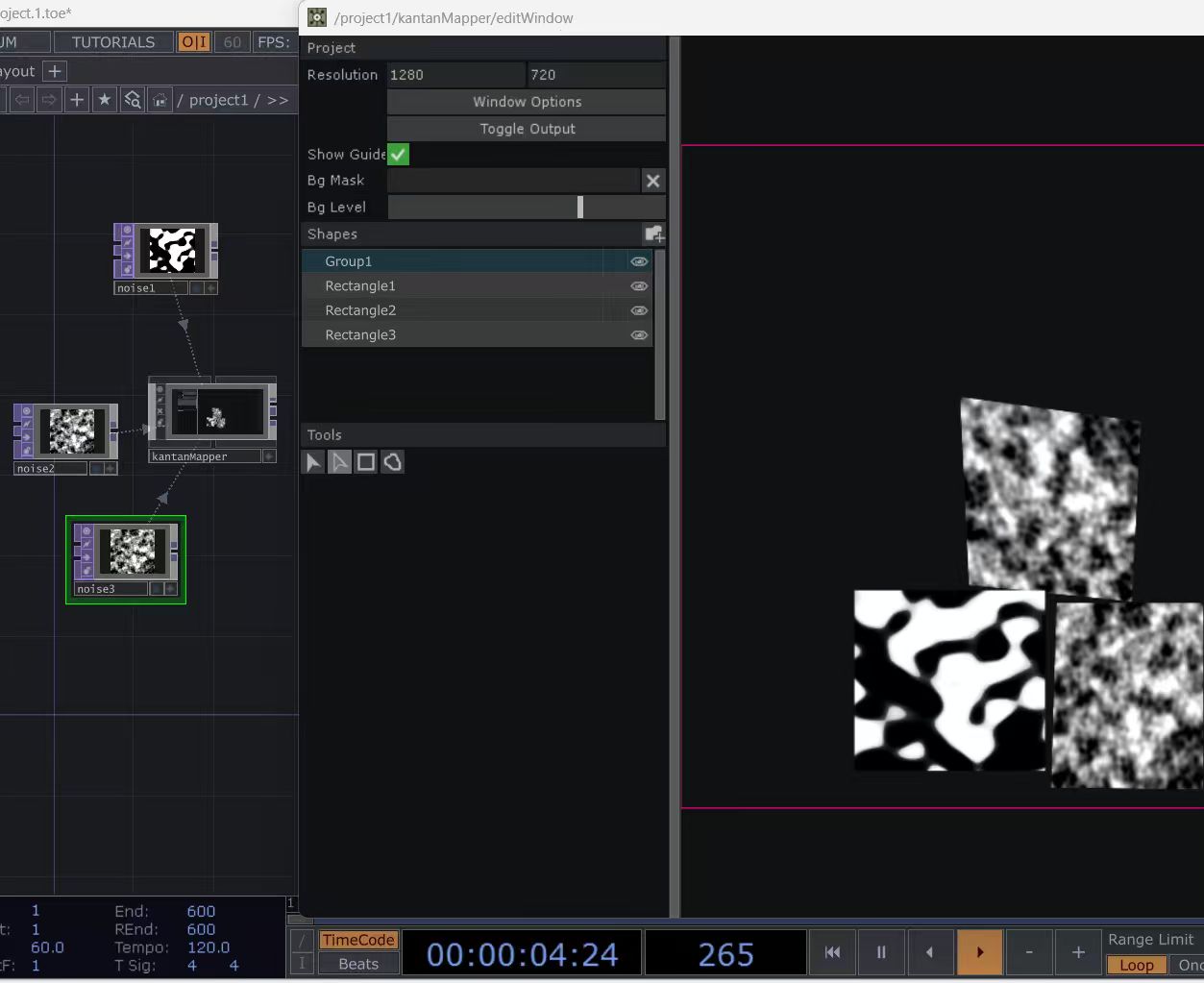

This is a screenshot of the process of applying a textured animation to a quadrilateral within Touch Designer.

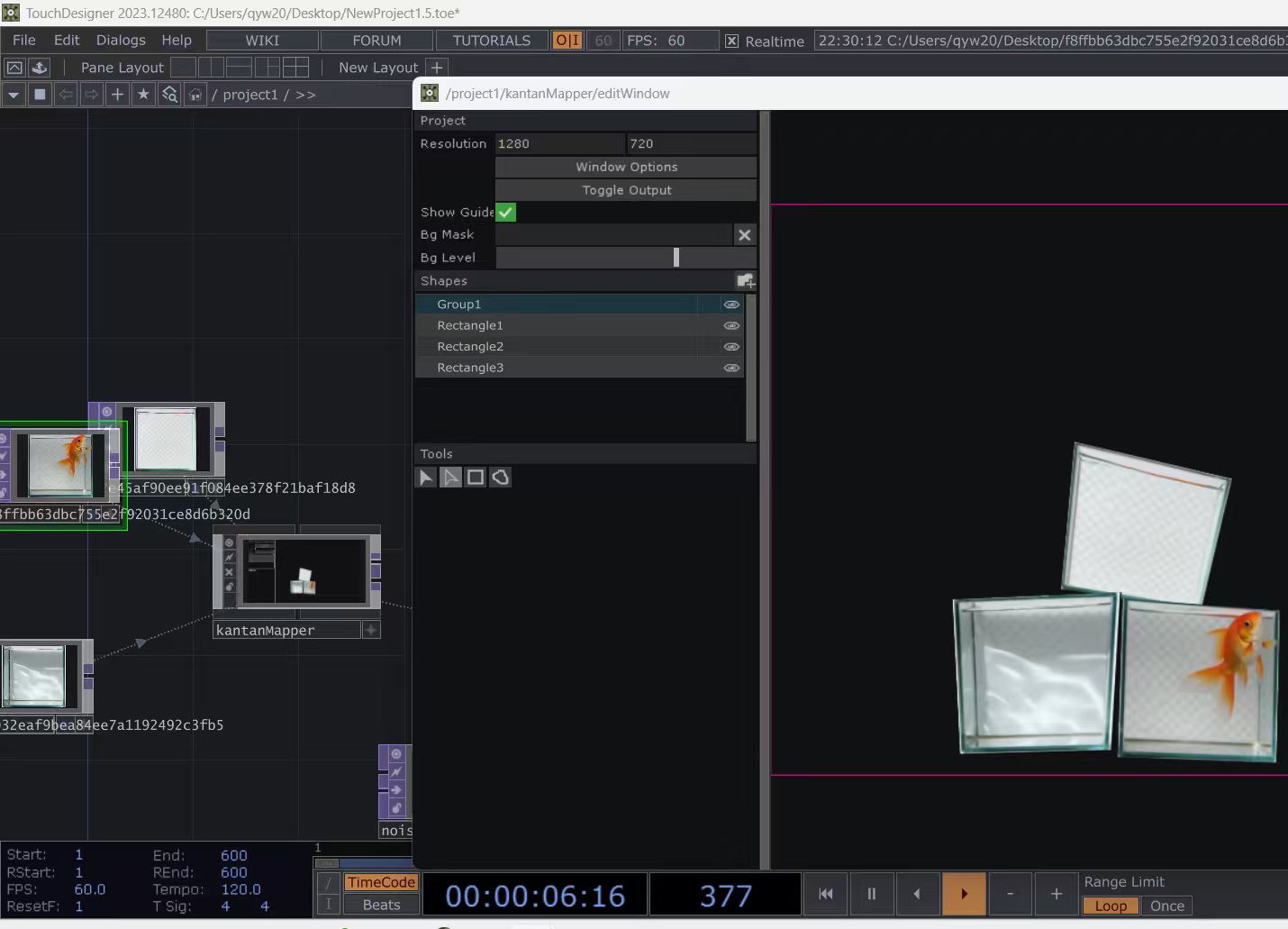

To place the prepared material onto the cardboard box, you need to replace the existing image on the rectangle and drag the four corners to adjust its shape.

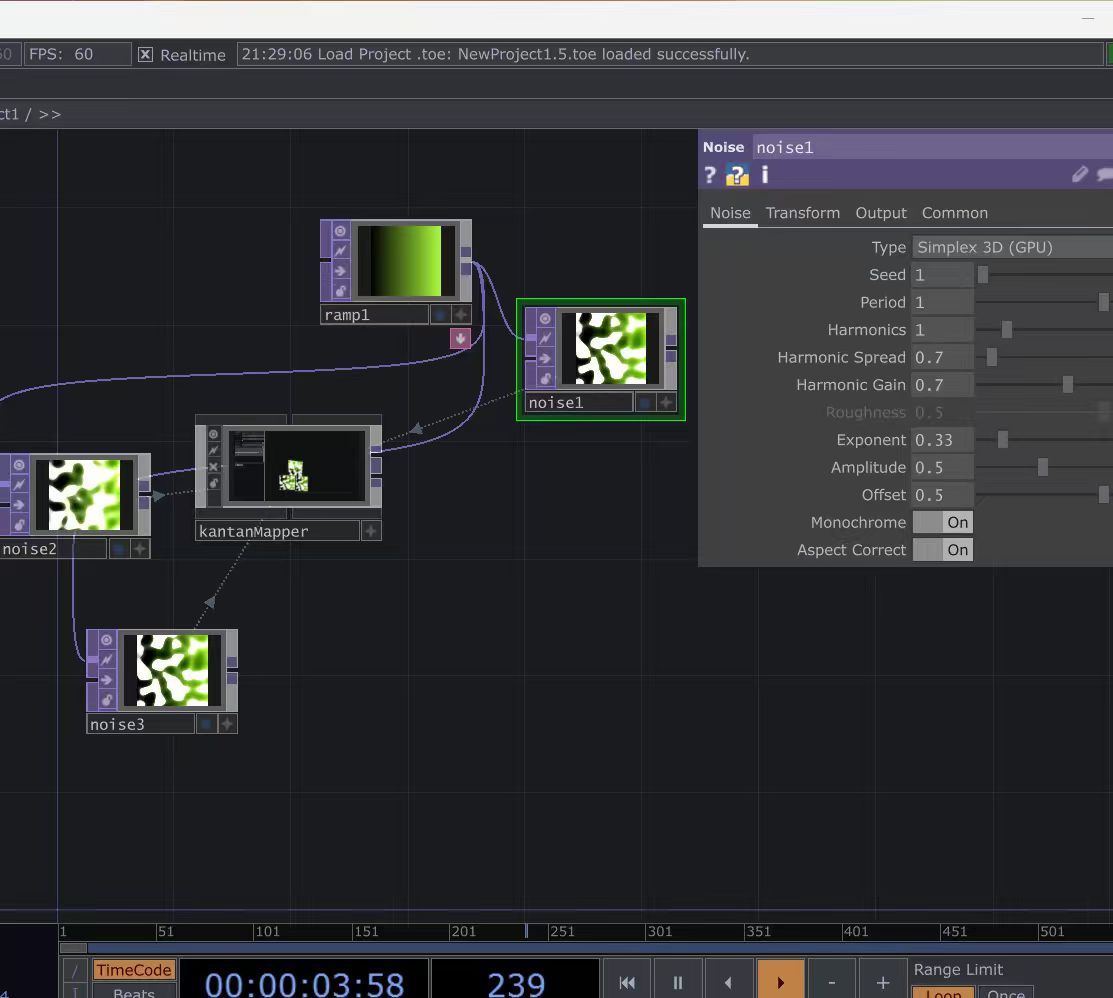

This is a screenshot of the process of adjusting the base values of the noise texture to alter its color and shape.

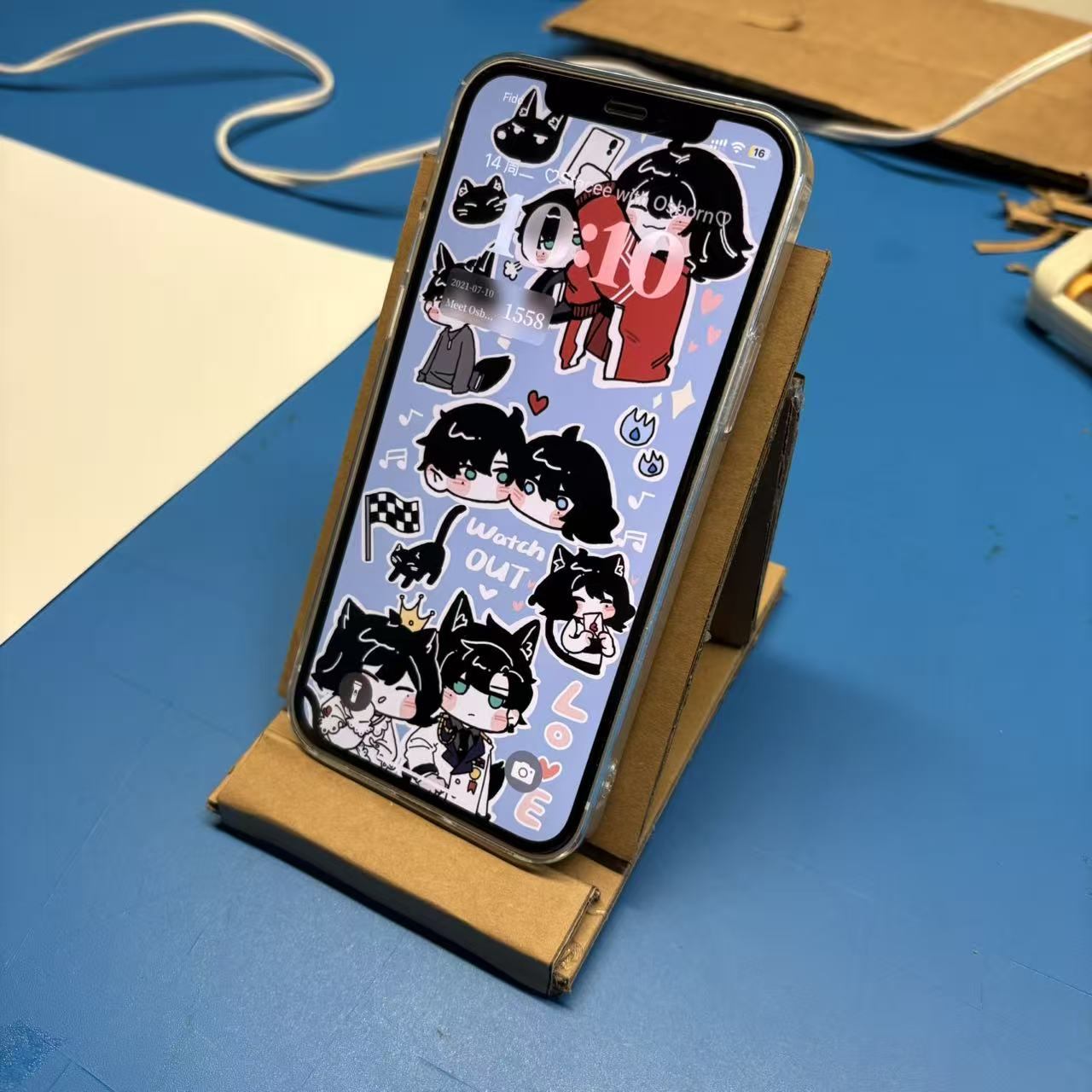

This simulates the scenario of placing a phone on a phone holder for use.

Project 2

Project 2 Prototype

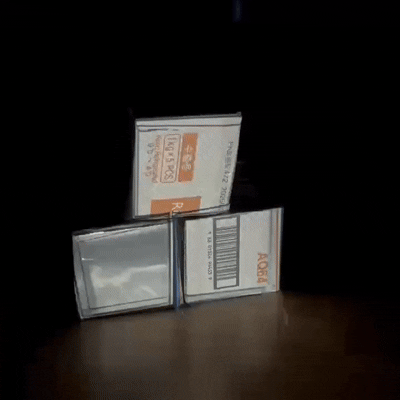

This is a GIF showing the placement and testing of assets on cardboard boxes. We aimed to create the sensation of a goldfish breaking through the physical boundaries between boxes, appearing to swim freely among three cardboard containers. This design is suitable for various modern decor applications. It aligns with our initial concept for this piece—breaking physical boundaries through design to deliver a uniquely immersive viewing experience for audiences.

This is a GIF showing the placement and testing of assets on cardboard boxes. We aimed to create the sensation of a goldfish breaking through the physical boundaries between boxes, appearing to swim freely among three cardboard containers. This design is suitable for various modern decor applications.
